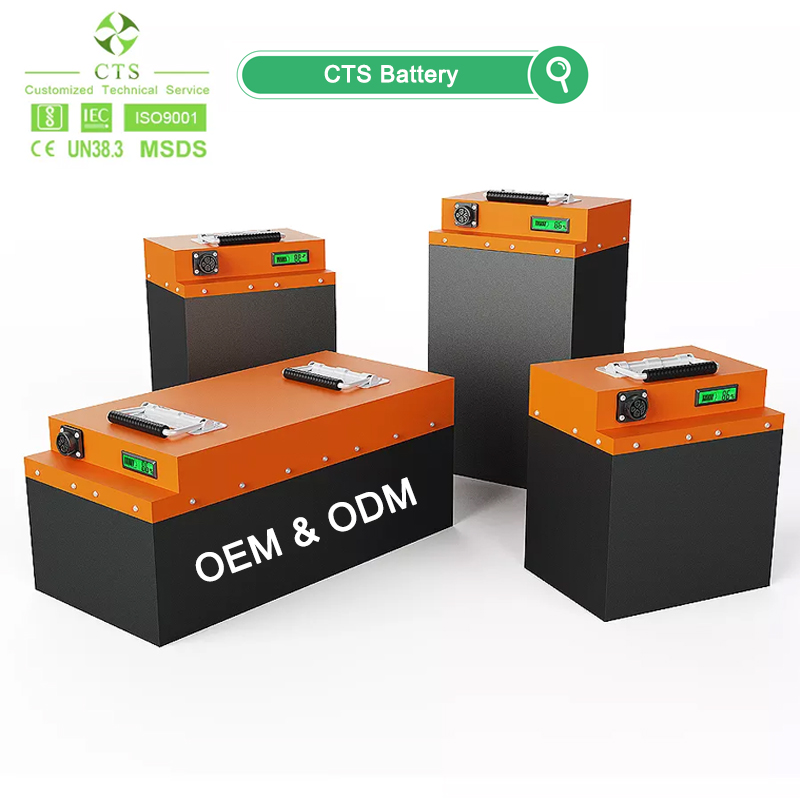

Ev Bus Lithium Lifepo4 Battery Pack 300v 400v 500v

Brand Name : CTS

Model Number : CTS-standard lithium battery

Certification : CE, MSDS, UN38.3

Place of Origin : Hunan,China

MOQ : 2 unit

Price : 3599~6999USD

Supply Ability : 5000 untis per month

Delivery Time : 20-35 working days

Packaging Details : Polywood case

Warranty : 2 years

Battery Size : Adjustable

Weight : 200kg-1000kg

Cycle life : 3000times

OEM/ODM : Acceptable

Voltagge : 150-800v

Capacity : 100-600Ah

Power : 30-600kwh

Type : NMC, Lifepo4

Discharge : 2C

Charging : 1C

Applicationev : electric car, truck, bus, AGV, boat

Cooling : Liquid cooling

Contact Now

New ev standard battery pack 300v 400v 500v electric car lithium battery, 30kwh 50kwh 100kwh ev bus lifepo4 battery

Ev Bus Lithium Lifepo4 Battery Pack 300v 400v 500v

Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle, large capacity AGV, Skyline crane. We have 5 star ★★★★★ experience in different market. lf you have any question,please contact us, we will provide the proper solution for you!

uD83DuDC4DStandard EV Battery Module for uD83DuDC4DBus and Heavy Truck uD83DuDC4DSupport Max 600KWH System

✅Multiple voltage and capacity choices: Support the max connection of 12 module(4S3P) in one system. Below are modules available, which can be connected freedomly, max 656V, 600KWH.✅Longer life:Redesigned liquid cooling system for improved thermal consistency and longer life. ✅Safer EV Battery Module: Reliable lifepo4 cells, multi-tiered safety system.

What is an EV battery module?


EV module and pack systems are assembled by both OEMs as well as automotive makers. A module is composed of a few cells welded or otherwise physically attached to each other. Multiple battery cells are assembled into a module, wrapped in steel plates, and have their poles welded together to produce the correct voltage.
How big is a standard EV battery module?

 dimensions: 1060 x 640 x 240mm (l x w x h).

You may also like

https://ctsbattery.en.alibaba.com/product/1600731711422-920313668/China_614v_60kwh_ev_lithium_batteries_345v_400v_40kwh_ev_car_battery_50kwh_100kwh_ev_lifepo4_battery_for_electric_car_truck.html

https://ctsbattery.en.alibaba.com/product/1600738640770-919392226/Factory_400V_20kwh_ev_battery_pack_345v_30kwh_40kwh_lifepo4_battery_for_electric_car_50kwh_60kwh_ev_AGV_lithium_battery.html

https://ctsbattery.en.alibaba.com/product/1600747695789-919579855/China_72v_battery_pack_for_electric_bike_72v_30ah_50ah_e_scooter_lithium_battery_60v_40ah_lifepo4_motorcycle_battery.html

4 stars and above:

MODEL	F128206	F128230	F153206	F153230
ELECTRICAL SPECIFICATIONS
Cell Type -Chemistry	3.2V 206ah	3.2V 230ah	3.2V 206ah	3.2V 230ah
Rated Voltage	128V	128V	153.6V	153.6V
Energy	26.386kWh	29.44kWh	31.16kWh	35.328kWh
IP Protection	IP67
Cycle life	>3000cycles(90%DOD, 0.5C)

Standard EV Battery Module facts:

uD83DuDC77PACK System Core Technology uD83DuDC77Compact + Lightweight Design uD83DuDC77Patented Smart Thermal Liquid Technology uD83DuDC77Modular Design + Single Module Drivable uD83DuDC77The all parts in the module is standard parts which are molded parts uD83DuDC77Cell Core Technology uD83DuDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.

Why choose this Standard EV Battery Module?

✅SOC Calculation: Real time dynamic calibration Vehicle operation condition wasconsidered Multi-method combination High accuracy measurement of thecell Voltage /temperature/pack current Amount of data from experiment✅Faults Diagnosis: Insulation & water leakage Cell voltage out of range High/low temperature Communication faults Contactor weld Power connection Temperature sensor faults

Electric vehicle lithium-ion battery - CTS battery

Electrical diagram of lithium battery system in standard box Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!

Hunan CTS Technology Co.,LTD

10+ years to sharpen a sword. We do only one thing, professional customization. 20 + R&D team 150 front-line production employees 10 production lines 20,000 square meter plant Capacity up to 500mwh Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on. We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc. We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications. We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.
